眾所周知，倉泵是我們氣力輸送系統中的重要組成部分。倉泵的分類大家知道么?有什么特點呢?今天引持整理了倉泵的分類及選項購買時的注意事項~希望對讀到這篇文章的小伙伴有所幫助!

　　As is well known, the bin pump is an important component of our pneumatic conveying system. Do you know the classification of warehouse pumps? What are the characteristics? Today, I organized the classification of warehouse pumps and the precautions for purchasing options. I hope this article will be helpful to those who have read it!

　　倉泵的分類及特點介紹:

　　Classification and Characteristics Introduction of Warehouse Pumps:

　　氣力輸送泵包括:倉式氣力輸送泵、噴射泵、螺旋氣力輸送泵和低壓高效節能泵。下面分享一下它們各自的特點。

　　Pneumatic conveying pumps include: bin type pneumatic conveying pumps, jet pumps, spiral pneumatic conveying pumps, and low-pressure high-efficiency energy-saving pumps. Let's share their respective characteristics below.

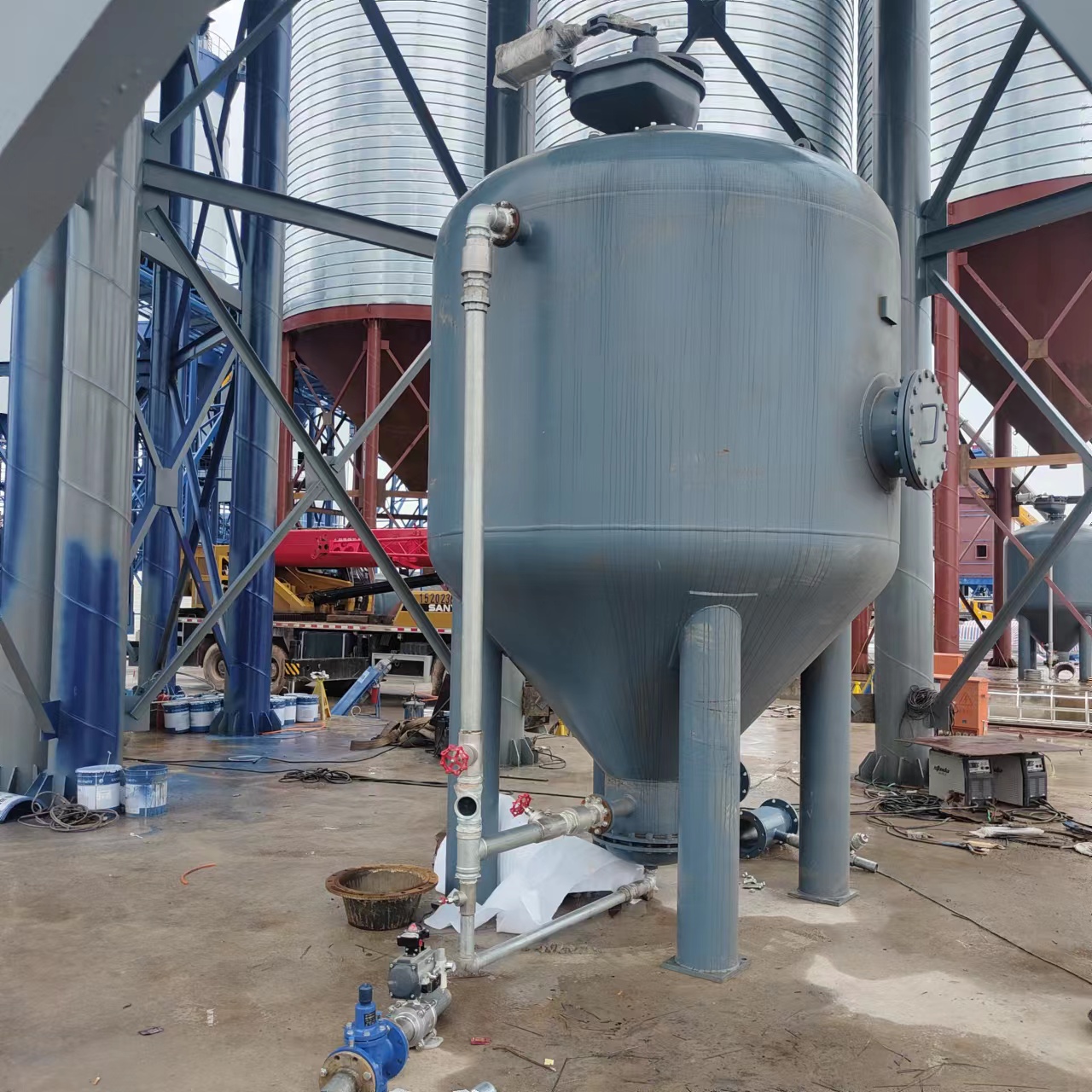

　　1、倉式氣力輸送泵

　　1. Warehouse type pneumatic conveying pump

　　倉泵氣力輸送泵用于濃相氣力輸送系統中，在有足夠高的氣流速度時，被輸送的物料在輸送管路載面內均勻分布，隨著氣流速度的降低，氣流逐漸集中在輸送管道段的底部;為了實現物料運輸所需的最小氣固流速，氣體流速不能任意降低

　　Warehouse pump pneumatic conveying pump is used in dense phase pneumatic conveying system. When there is a sufficiently high airflow velocity, the conveyed material is evenly distributed in the conveying pipeline surface. As the airflow velocity decreases, the airflow gradually concentrates at the bottom of the conveying pipeline section; In order to achieve the minimum gas-solid flow rate required for material transportation, the gas flow rate cannot be arbitrarily reduced

　　明顯地把輸送的氣體和補輸送的物料分開是濃相氣力輸送的基本特點。按照補輸材料的類型，補輸材料主要分布在輸送管截面底部，并以繩狀流與間歌沙丘流、不規則團狀流或充滿管載面的柱塞流相結合的方式輸送

　　Clearly separating the conveyed gas from the supplementary conveyed material is a fundamental characteristic of dense phase pneumatic conveying. According to the type of supplementary materials, they are mainly distributed at the bottom of the cross-section of the conveying pipe and transported in a combination of rope flow, sand dune flow, irregular lump flow, or plunger flow that fills the pipe surface

　　2、噴射泵

　　2. Jet pump

　　射流泵是一種利用高能流體通過噴嘴產生高速并形成負壓來吸收流體的裝置。射流泵的特點是結構簡連續運行、無旋轉部件、使用壽命長，但其噴嘴容易被碎堵塞，效率低單

　　Jet pump is a device that uses high-energy fluid to generate high speed and negative pressure through a nozzle to absorb fluid. The characteristics of jet pumps are simple structure, continuous operation without rotating parts, and long service life, but their nozzles are prone to breakage and blockage, resulting in low efficiency

　　3、螺旋氣力輸送泵

　　3. Spiral pneumatic conveying pump

　　螺旋氣力輸送泵用于將輸送的物料通過高速螺旋輸送到設備前方的混合室，物料在混合室落入輸送氣流中，達到輸送的目的。

　　Spiral pneumatic conveying pump is used to transport the conveyed materials through high-speed spiral to the mixing chamber in front of the equipment. The materials fall into the conveying airflow in the mixing chamber to achieve the purpose of conveying.

　　具有機、電、氣、儀一體化功能，可以實現全自動運行。連續輸送形式，體積特別緊，適用于輸送各種粒徑不等的混合料適用于輸送含水量較高的物料。輸送壓力較低。輸送管的管壁磨損小。

　　It has integrated functions of machine, electricity, gas, and instrument, and can achieve fully automatic operation. Continuous conveying form, with a particularly tight volume, suitable for conveying mixtures of various particle sizes and materials with high moisture content. The conveying pressure is relatively low. The wall wear of the conveying pipe is minimal.

　　4、低壓高效節能泵

　　4. Low pressure high-efficiency energy-saving pump

　　高效節能泵是通過流體力學軟件CAD和三元流理論相結合的方式對節能泵進行優化設計，對葉輪，流道，吸水室，壓水室內部進行三維流場數值模擬，優化流道內的流態和能量分布。更高的抗氣蝕性能，效率更高。減小了該泵的轉子重量，降低了泵組的徑向力，提高了軸承壽命。減小了密封的磨損，延長了使用壽命。

　　Efficient and energy-saving pumps are optimized through the combination of fluid mechanics software CAD and ternary flow theory. Three dimensional flow field numerical simulations are conducted on the impeller, flow channel, suction chamber, and pressurized water chamber to optimize the flow state and energy distribution inside the flow channel. Higher cavitation resistance and efficiency. Reduced the rotor weight of the pump, lowered the radial force of the pump assembly, and improved the bearing life. Reduced seal wear and extended service life.

　　倉泵選型購買時的注意事項:

　　Precautions for selecting and purchasing warehouse pumps:

　　1、出料方式:上引式還是下引式。

　　1. Discharge method: upward or downward.

　　2、使用場所:室內還是室外。

　　2. Place of use: indoor or outdoor.

　　2、能力:每小時供料量是多少t/h。

　　2. Capacity: What is the hourly feed rate in tons per hour.

　　4、氣力輸送物料的性能、粒度、真密度、堆積密度、溫度、含水率。

　　4. The performance, particle size, true density, bulk density, temperature, and moisture content of pneumatic conveying materials.

　　5、附屬品、備件是否需要。

　　5. Are accessories and spare parts needed.

　　6、涂裝色:有無顏色指定，若無顏色指定，為我公司產品標準顏色:

　　6. Coating color: Is there a color specification? If there is no color specification, it is our company's product standard color:

　　上述內容就是倉泵的分類及選項購買時的注意事項~鑫魯泉盛的產品齊全，價格實在，工藝流程設計優，用服務創造市場，用品牌引領市場，歡迎新老客戶來廠參觀考察。

　　The above content is the classification and selection of warehouse pumps, and precautions when purchasing. Xinlu Quansheng has a complete range of products, reasonable prices, excellent process design, creates the market with service, and leads the market with brand. New and old customers are welcome to visit and inspect the factory.
